PRUNUS E

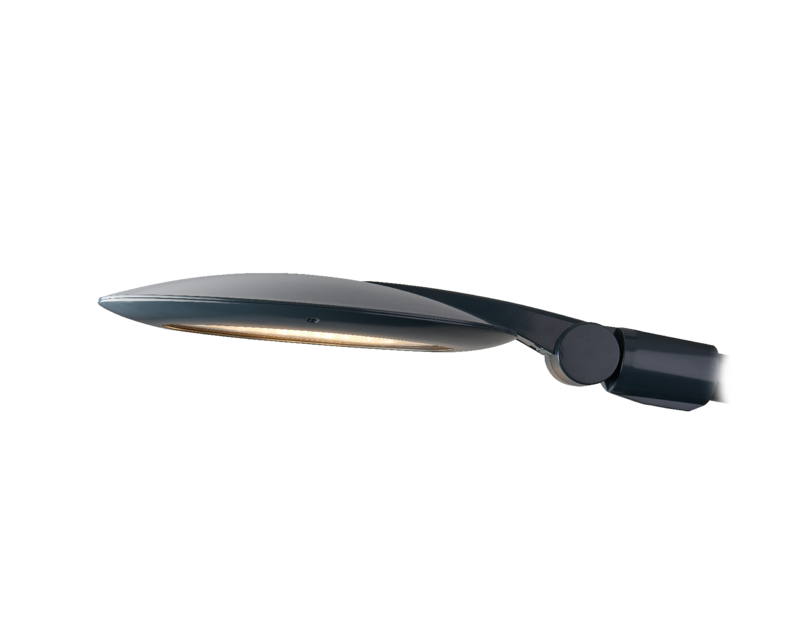

DESIGN WITH AN EYE FOR DETAILThe PRUNUS E is a versatile, round LED luminaire with an easily adjustable post-mount arrangement. This makes it possible to use the PRUNUS E both as a slide-on or top-mount luminaire. The tilt angle can also be adjusted. The luminaire is widely applicable in residential areas, public squares, parks, business parks, district distributor roads, town and village centres, separate cycle paths and car parks.
Applications
Public spaces and architecture, Inside the built-up area, Outside the built-up area, Access road, Major road, Public squares and parks
Luminaire type
Circular luminaire,
Area Floodlight
Light cover
Polycarbonate, clear,
Structured polycarbonate,
Safety glass, clear
Color
RAL 7016
Housing
Aluminium coated
Lumenrange
From
800
to 6000
Label
Lightronics
CRI
> 70
IP
IP66
IK
IK 10
Lightprofiles
Asymmetric,
Wide distribution,
Circular distribution,
Small beam
MARKING POINTS
The PRUNUS E can optionally be fitted with an LED ring in the top cover. This makes it possible to apply marking points in the streetscape and to assign the living environment its own identity. The LED ring is available in seven colours.
Ocean Blue
PRUNUS E benefits
LIGHTING AS AN ORIENTATION LANDMARK
Town and village centres need to be consistently recognisable in a streetscape. The PRUNUS family offers planners, architects and local authorities the opportunity of structuring the living environment in a recognisable and stylish manner using a single luminaire range. This family of luminaires, which includes 6 models and 23 variants, offers an extensive range of choice in terms of shape, light distribution and application possibilities. An LED ring in the hood or top flange makes it possible to integrate orientation landmarks in the streetscape and give the living environment its own identity. The LED ring is available in seven colours.
LIGHT OUTPUT

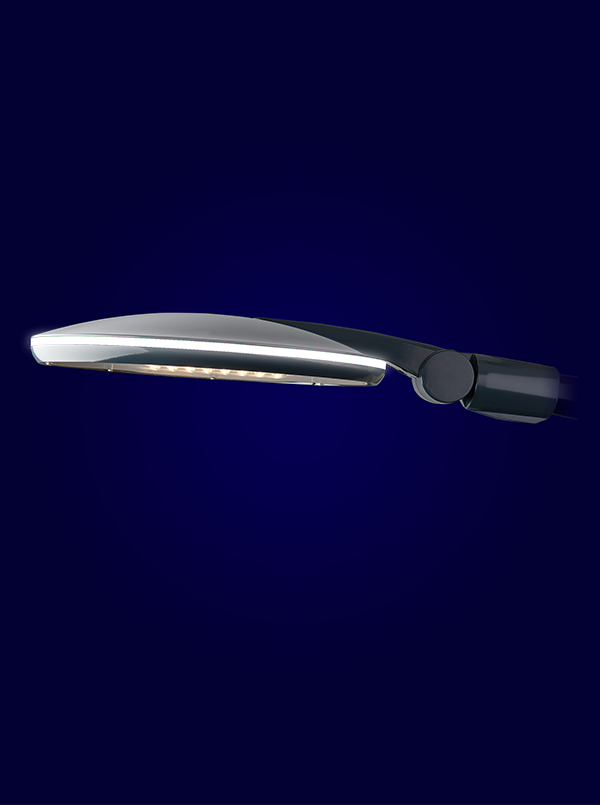

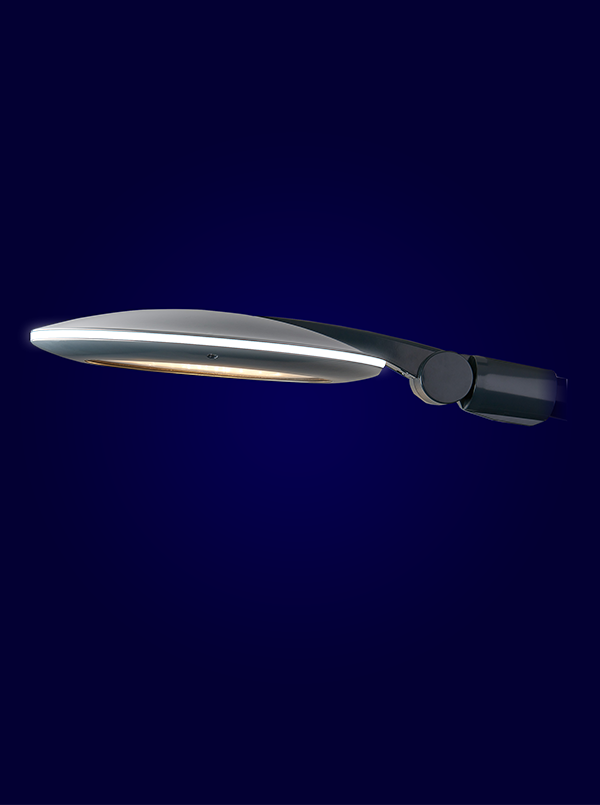

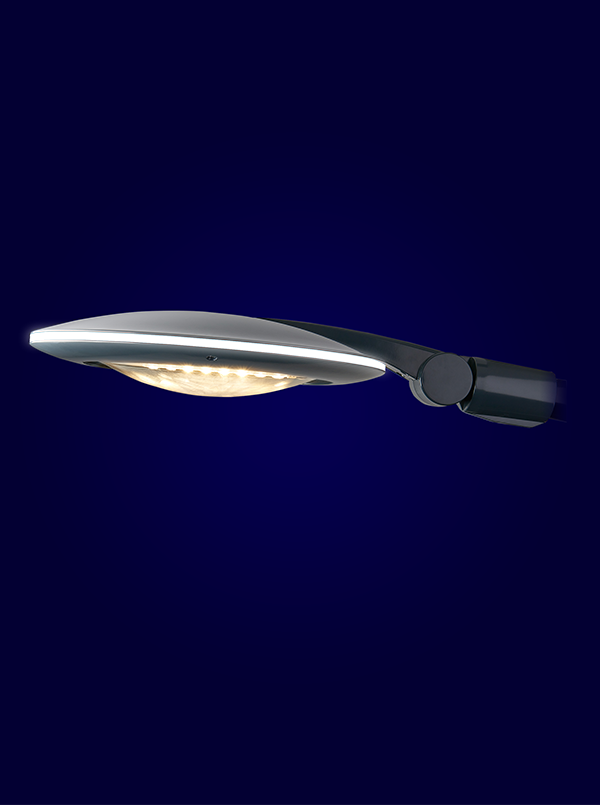

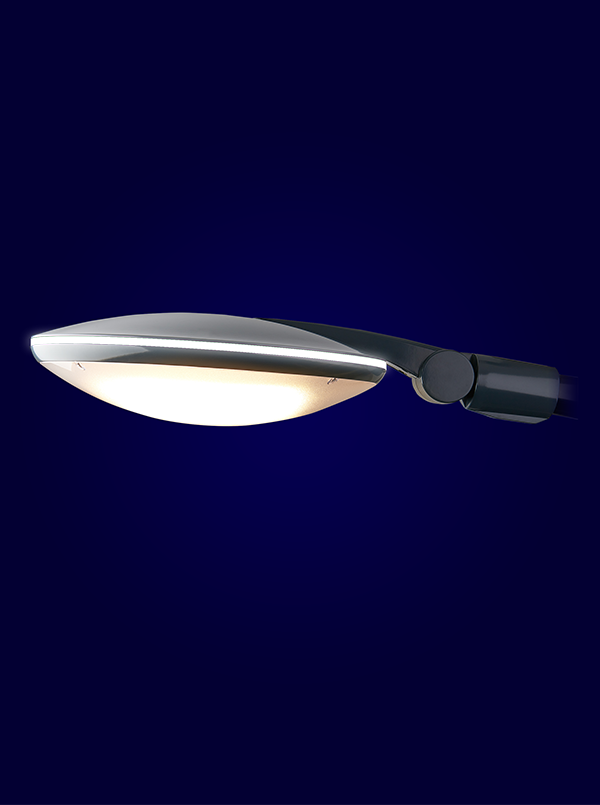

Shape and flexibility are two important factors in the PRUNUS family. The PRUNUS E is available in four variants. The variants are distinguished from each other by a different light cover. The E1 and E2 feature a flat light cover made from transparent polycarbonate, with a larger freelight cover surface area and higher lumen output for the E2. The E3 has a contoured light cover made from textured polycarbonate. The E4 has a transparent, contoured light cover made from safety glass.
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
