PRUNUS C
DESIGN WITH AN EYE FOR DETAILThe street and yard lighting luminaires in the PRUNUS family are characterised by design with an eye for detail. The PRUNUS C is a round luminaire available in four variants, which can be used for a wide range of applications thanks to the choice of diffusers, power ratings and light profiles. The luminaire is suitable for business parks, car parks, parks, public squares, town and village centres, separate cycle paths, residential areas and district distributor roads. The luminaire is waterproof (IP66) and impact-resistant (IK10).
Applications
Public spaces and architecture, Station area, Leisure, Inside the built-up area, Outside the built-up area, Holiday parks, Sports, Footpaths and cycle paths, Parking lot, Roads, Crossings, Industrial estate, Public squares and parks, Train station, Foothpaths and cycle paths, Carpark
Luminaire type
Circular luminaire,
Post-top luminaire
Light cover
UV-stabilised polycarbonate, clear,
Structured polycarbonate,
Safety glass, clear
Color
RAL 7016
Housing
Aluminium coated
Lumenrange
From
800
to 6000
Label
Lightronics
CRI
> 70
IP
IP66
IK
IK 10
Lightprofiles
Asymmetric,
Circular distribution,
Wide distribution,
Small beam
MARKING POINTS
The PRUNUS C can optionally be fitted with a LED ring in the top cover of flange. This makes it possible to apply marking points in the streetscape and to assign the living environment its own identity. The LED ring is available in seven colours.
Ocean Blue
PRUNUS C
LIGHTING AS AN ORIENTATION LANDMARK
Town and village centres need to be consistently recognisable in a streetscape. The PRUNUS family offers planners, architects and local authorities the opportunity of structuring the living environment in a recognisable and stylish manner using a single luminaire range. This family of luminaires, which includes 6 models and 23 variants, offers an extensive range of choice in terms of shape, light distribution and application possibilities. An LED ring in the hood or top flange makes it possible to integrate orientation landmarks in the streetscape and give the living environment its own identity. The LED ring is available in seven colours.
VARIANTS

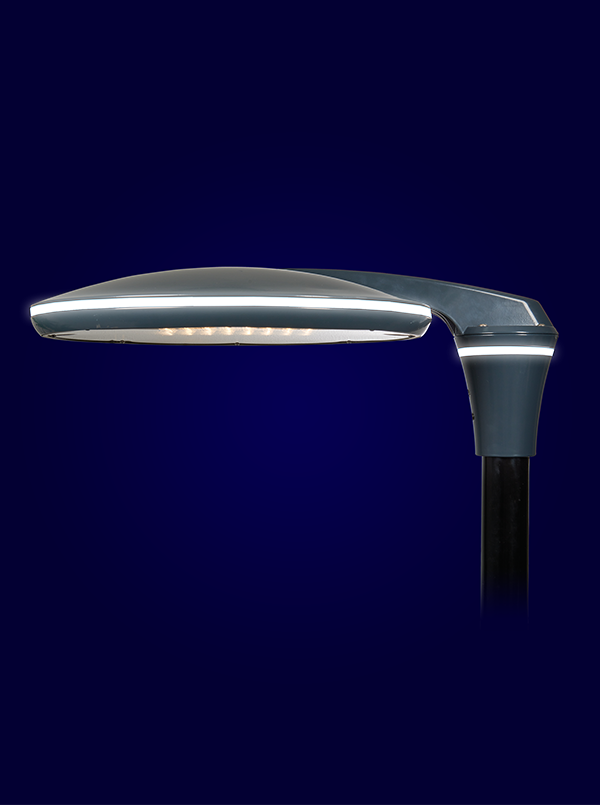

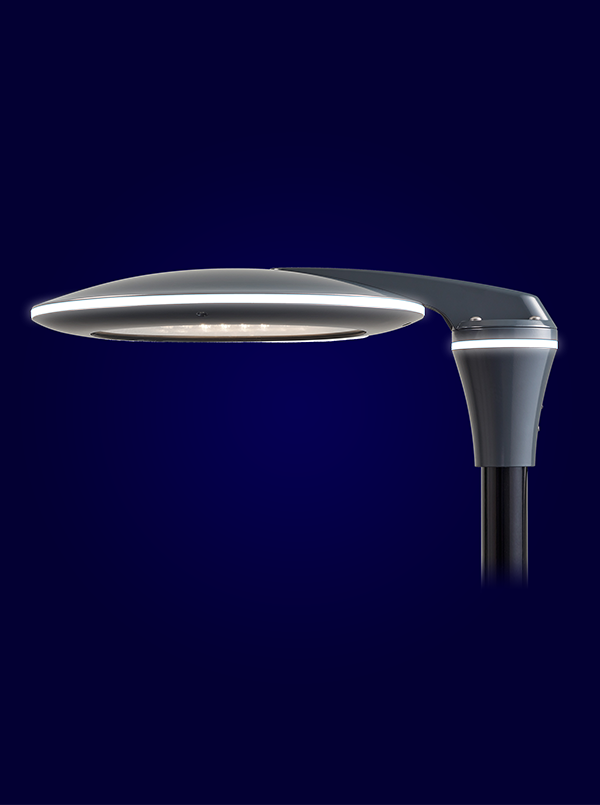

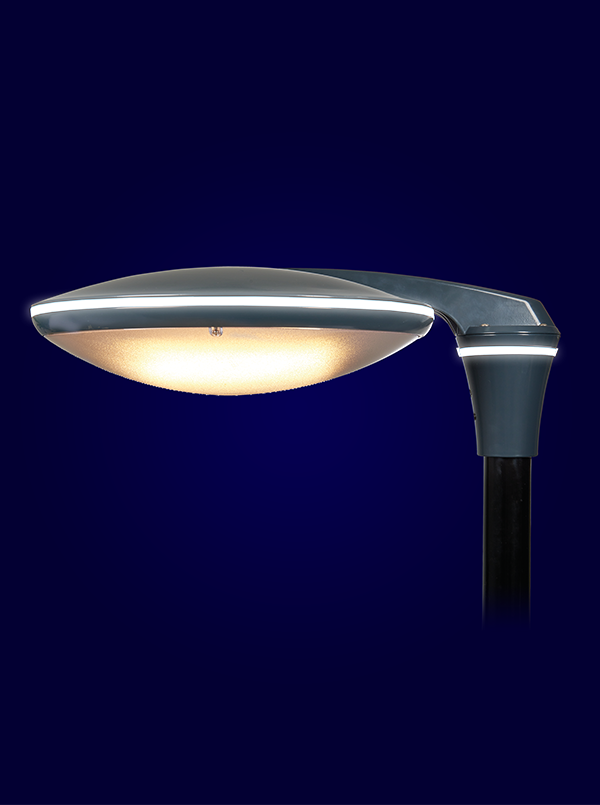

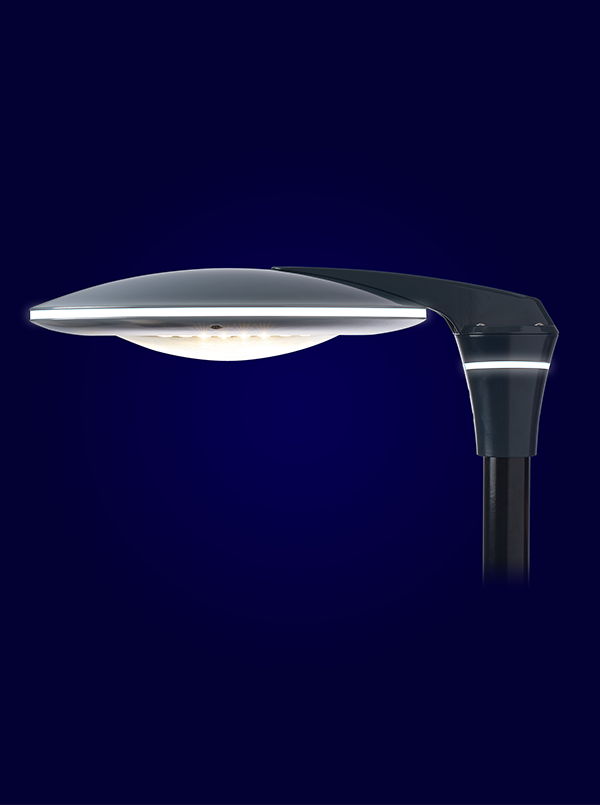

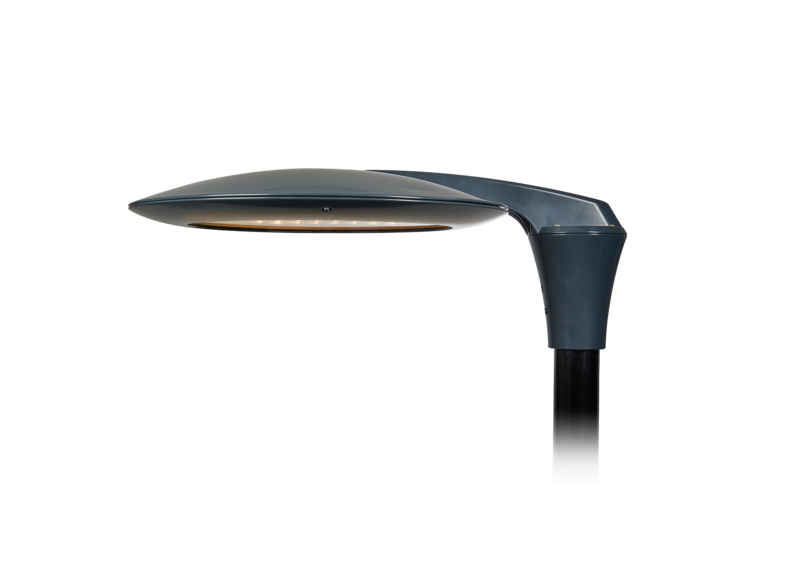

Flexibility and shape are two important factors within the PRUNUS family. The PRUNUS C is available in four variants: C1, C2, C3 and C4. The C1 and C2 feature a transparent flat light cover made from UV-stabilised polycarbonate, with a larger free light cover surface area and higher lumen output for the C2. The C3 has a contoured light cover made from textured polycarbonate. The C3 has a contoured light cover made from transparent safety glass.
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
Alternative luminaires
Functionally complete
From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna.
Ffexibility in shape
The PRUNUS E is a round LED luminaire with an adaptable mounting arrangement for slide-on or post-top attachment. The PRUNUS E is available in four variants and is suitable for a wide range of applications in public spaces.
Special appearance

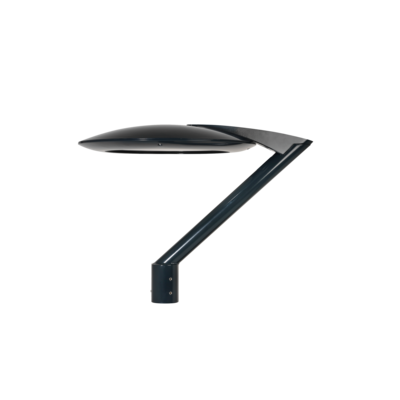

The PRUNUS F has a striking appearance and is suitable for various applications in public spaces. This round luminaire is available in four variants. A different diffuser distinguishes them from each other.
