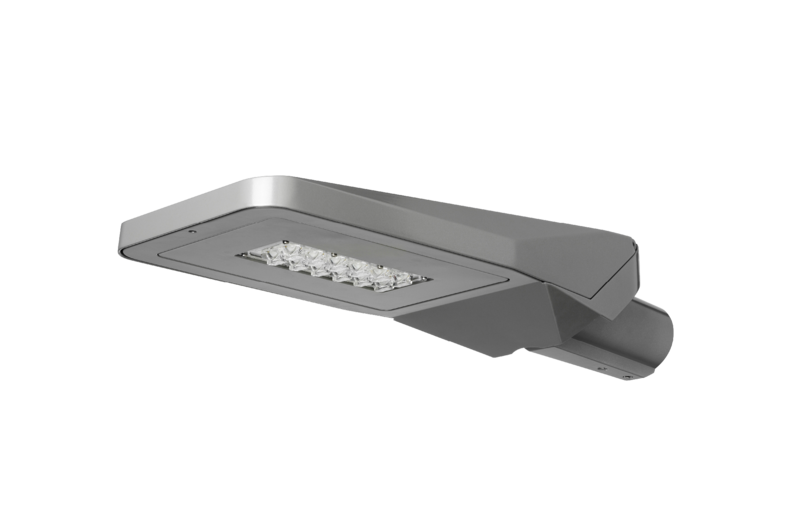

BRISA EXL

FUNCTIONALLY COMPLETE

The BRISA EXL is an excellent lighting solution for (long) cycle paths in outlying and residential areas. This luminaire offers a 48% higher level of lighting uniformity on a standard profile (30 m). The BRISA EXL offers a single type of light distribution, specifically for cycle paths, and allows post distances of up to 34 metres at a post height of four metres.

Short overview
IP66 IK10 Veiligheidsklasse1 Veiligheidsklasse2 Easylight Dekra enec Controlled Solutions CE

Applications
Inside the built-up area, Outside the built-up area, Holiday parks, Train station

Luminaire type
Area Floodlight

Color
RAL 9007, RAL 9005, RAL 7016

Housing
Aluminium double coated

Constant Lumen Output
Standard

Lumenrange
From 800 to 2000

Label
Lightronics

CRI
> 70

Lightprofiles
Wide distribution

Lightronics-geenfoto

BRISA EXL BENEFITS

LIVING ENVIRONMENT

The BRISA variants allow you to effectively illuminate the entire living environment with just one luminaire line. The BRISA WALK is specially configured for pedestrian crossings, the BRISA BIKE is tailor-made for cycle paths, the BRISA EXL is ideal for cycle paths and footpaths in outlying areas, and the BRISA covers the entire residential segment. The BRISA PLUS is ideally suited for use on access roads and ring roads. We also offer the BRISA BAT, which is fitted with an amber LED light source to protect bats.

EXTERNAL LENSES

EXL stands for external lenses. The BRISA EXL's lenses are placed on the outside of the luminaire. This design provides efficient lighting where needed, and also acts as guidance lighting. The BRISA EXL features tilt adjustment to shine the light beam exactly where you need it under all circumstances. The BRISA EXL can be supplied with any dimming program you specify. This keeps your energy consumption low. The BRISA EXL is easy to assemble, install and maintain.

Climate Agreement implementation

CLIMATE AGREEMENT

The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.

Easylight

Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.

controlled_solutions

Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.

Lightronics-duurzaam-ceder

Alternative luminaires

Guidance lighting

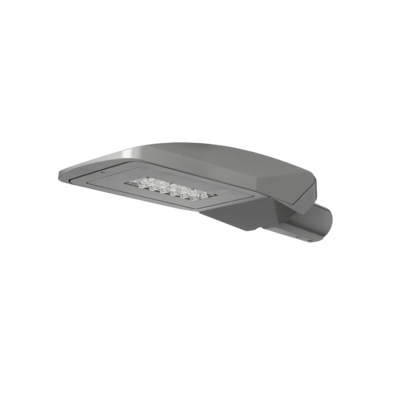

EXL stands for external lenses. The lenses of the BURAN EXL are placed on the outside of the luminaire. This design provides efficient lighting where needed, and also acts as guidance lighting. The BURAN EXL features tilt adjustment to shine the light beam exactly where you need it under all circumstances.

Functionally complete

From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna.

Flexibility in shape and function

The PRUNUS A post-top luminaire has a transparent or semi-frosted light cover and is available with various light distributions. Because the light distribution can be precisely determined, the PRUNUS provides light where and when required in public spaces.

Looking for a lighting solution? We look forward to helping you
