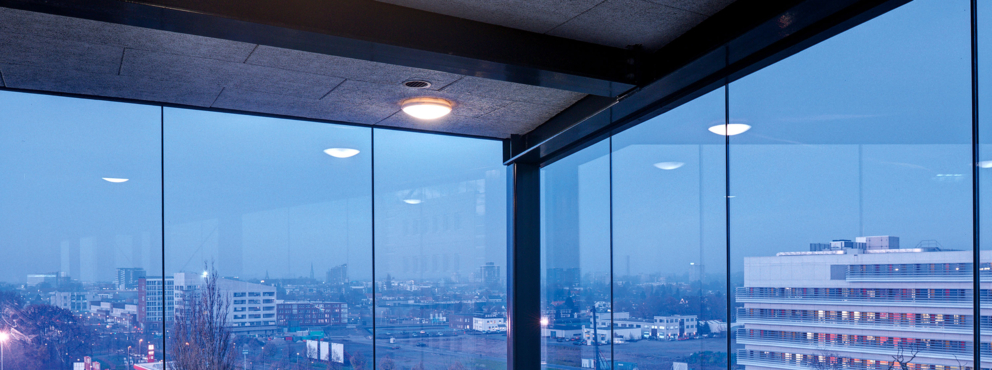

Lightronics_header_TTN

TTN

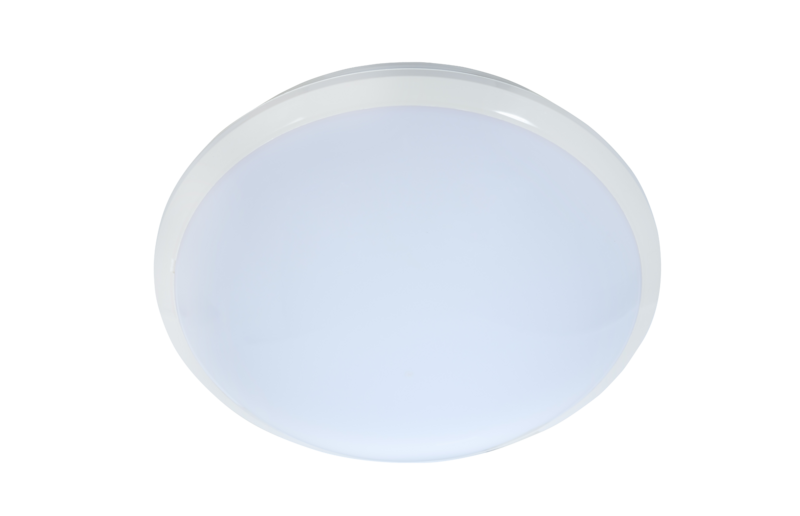

VERSATILE SURFACE-MOUNTED AND SEMI-FLUSH-MOUNTED LUMINAIRE

The TTN ceiling luminaire is ideal for residential construction and satisfies circularity requirements with our LED retrofit solution. To ensure safe use, stairwells and corridors must be brightly lit from wall to wall, with no reflections. The round TTN ceiling luminaire is ideally suited to these applications. The TTN is easy to install and can also be partially recessed using the supplied rim. In addition to lighting corridors, entrance halls, external access galleries, lift lobbies and stairwells, this luminaire can also be used as emergency lighting. The IP44 and IK 10 classification guarantee good impact resistance and protection against water splash.

Short overview
IP44 IK10 Veiligheidsklasse1 Veiligheidsklasse2 Easylight Comfortlight Exit route CE Oppluskit

Applications
Appartment building, Migrant accommodation, Student accommodation, Holiday parks, Sports, External access gallery, Stairwell, Corridors, Entrance, Reception, Canteen, Emergency lighting

Luminaire type
Surface-mount luminaire, Recessed luminaire

Light cover
Polycarbonate, opal

Housing
UV-stabilised, flame retardant, UV-stabilised polycarbonate

Lumenrange
From 650 to 2320

Label
Hogro

CRI
> 80

IP
IP44

IK
IK 10

Lightprofiles
Symmetric

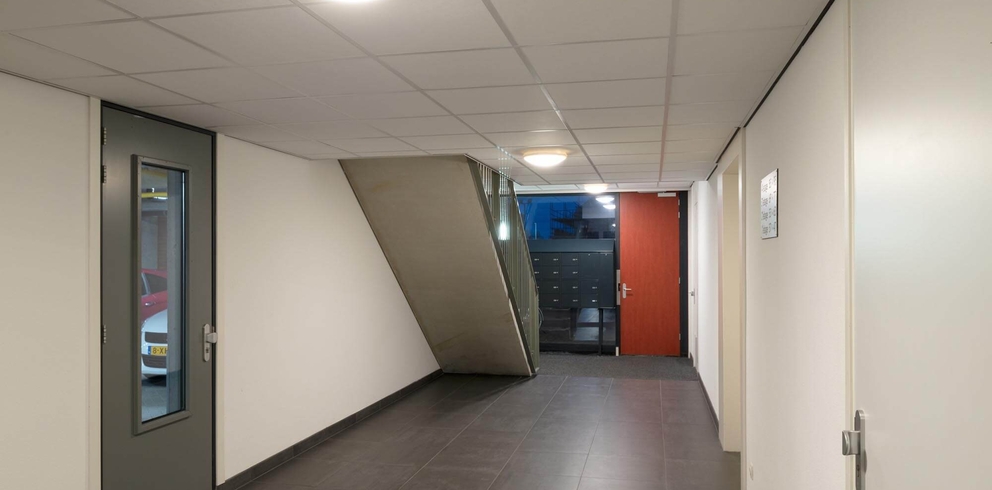

Lightronics TTN armatuur bij de entree van een appartementencomplex

TTN BENEFITS

ADVANTAGES

Lightronics offers a large number of functional luminaires under the Hogro label. These luminaires offer proven quality and are prepared for the future. Our retrofit unit can be used to convert existing conventional TTN luminaires to LED; a solution that avoids unnecessary painting and decorating and eliminates the cost of installing replacement units. For a modest outlay, you can immediately benefit from all the advantages of LED, both in terms of the lighting technology, and maintenance and operation.

Alternative luminaires

The middle size

In terms of size, the DOTT M is the middle member of the DOTT luminaire family and is also available in a semi-recessed version. The DOTT M is ideally suited for use in entrance halls, lift lobbies, stairwells, corridors and entrances. This highly impact-resistant luminaire can be equipped with a twilight switch, motion sensor and emergency lighting function. You can combine the DOTT with the GEO or RINK to create a consistent visual identity for the lighting in a building complex.
